For people who seek a small-to-middle sized touch monitor
Ideal for embedding in industrial equipment

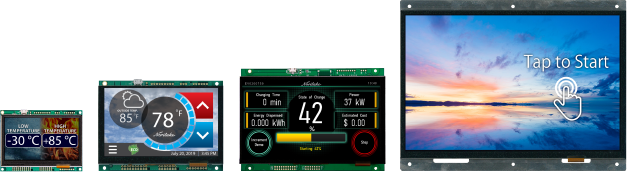

Touch Panel LCD Module
- High-Sensitivity
- Long-term Supply
- Japan-made product
Feel free to ask us using this form
Feel free to ask us using this form
It has poor touch sensitivity and/or unstable
The item has a short production lifecycle and will be discontinued in a short period of time, it burdens you with a redesign and re-certification process.
Insufficient customer support.
01
A highly sensitive touch screen called "FLETAS",
which uses thin metallic film technology developed by Noritake VFD Production, is installed.
It provides higher sensitivity, wider signal-to-noise ratio, and easy to touch adjustment,
and to perform better stability in any touch screen application.
02

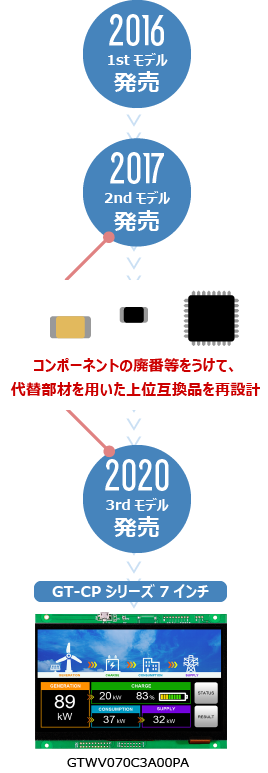

We are very aware of how important long-term support is for our customers
and how they value maintaining a long-term production life-cycle.
If we are notified that a component will be discontinued,
we will seek out the most compatible replacement possible

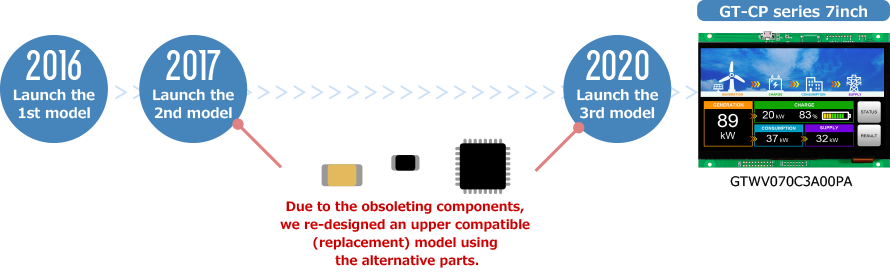

and consider designing a replacement model as the image shows below.

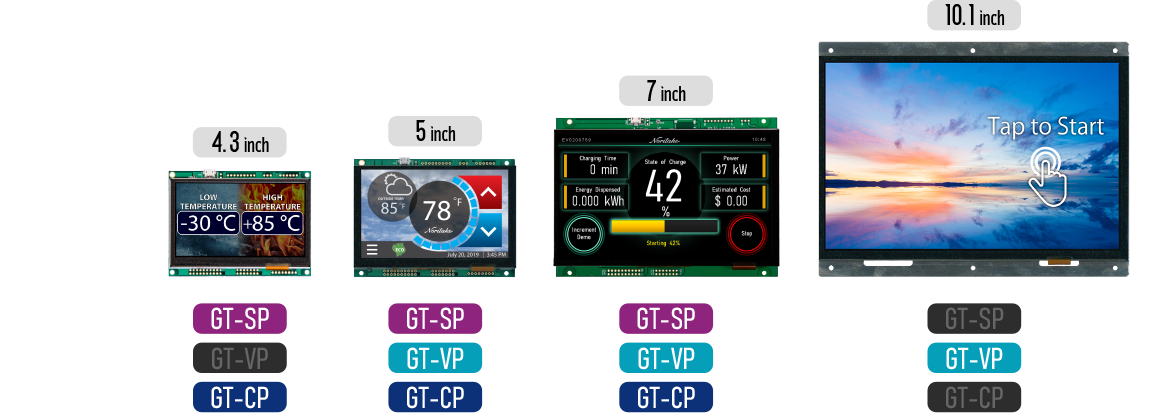

series
The GT-SP series is suitable for applications that use a low-to-middle range microcontroller as a host board.

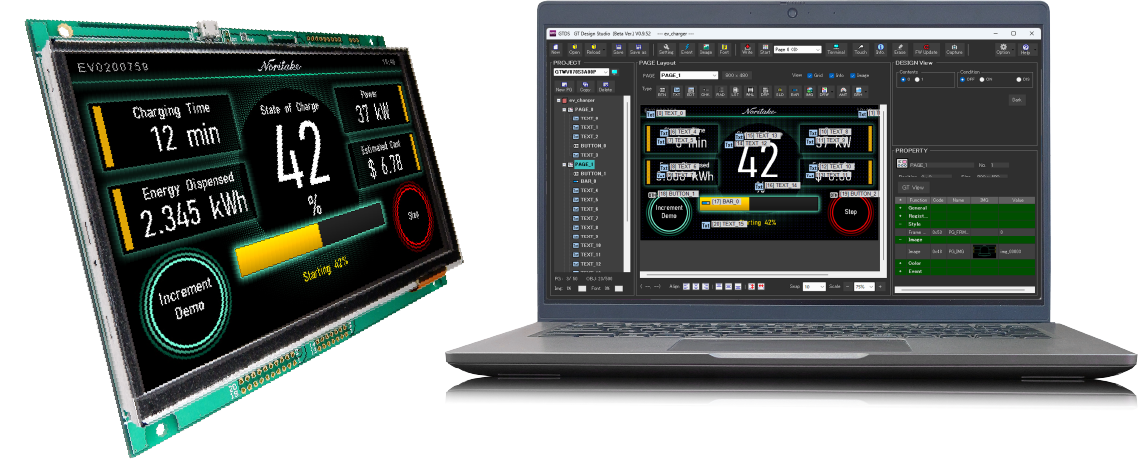

Available pre-installed GUI objects such as buttons, texts, images, and checkboxes to layout them on your GUI pages by drag and drop, using our PC tool, you can compile the GUI design and download it to the GT-SP.
TEXT
BUTTON
EDIT BOX
CHECK BOX
RADIO BUTTON
WHEEL
LIST
DROPDOWN
SRIDER
BAR
etc.

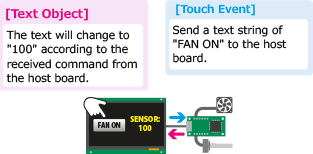

A touch event occurs when the object detects touch. Every object on the GUI page can handle the touch event and make an event action assigned by the PC tool. For example, the button object can change the text, color, and button image along with changing the page or sending some data to the host controller. These actions are performed by GT-SP itself and do not burden the host during the event actions.
The host board can also manage any GUI object through a serial interface by sending a few commands, and can also change the text, color, size, position, etc. of the selected object.
series
The GT-VP series is suitable for applications that use a single board computer as a host board.

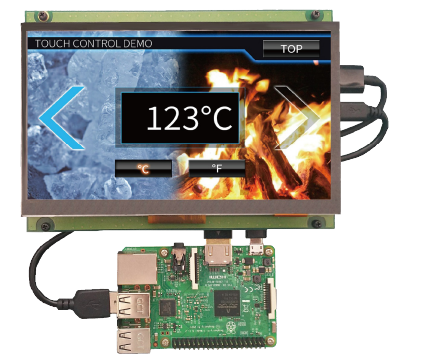

Works with popular single board computers like Raspberry Pi, Just plug in an HDMI, USB and power, the GT-VP will turn on as your touch monitor. (As long as your computer can handle Extended Display Identification Data (EDID), there are no additional settings or drivers are required.)
Get better touch response with optimized touch sensitivity. Our touch sensitivity adjustment software or command allows you to optimize touch sensitivity based on the display mounting configurations, touch applications, and other conditions.
series

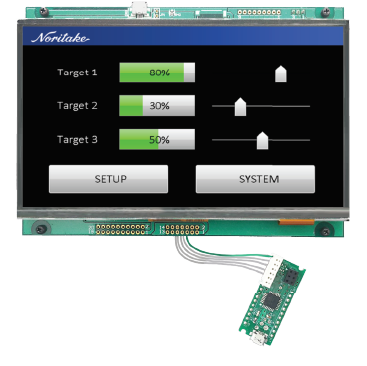

The GT-CP series is suitable for applications that use a low-to-middle range microcontroller as a host board.
The Touch and Display commands consist of simple byte data and (ASCII) character code that can be sent through an industrial common serial interface (UART/SPI and I2C) equipped on a major microcontroller.
You can pre-register the images in the on-board flash memory using the development support software, which can reduce the complexity of managing the display image from the host controller.

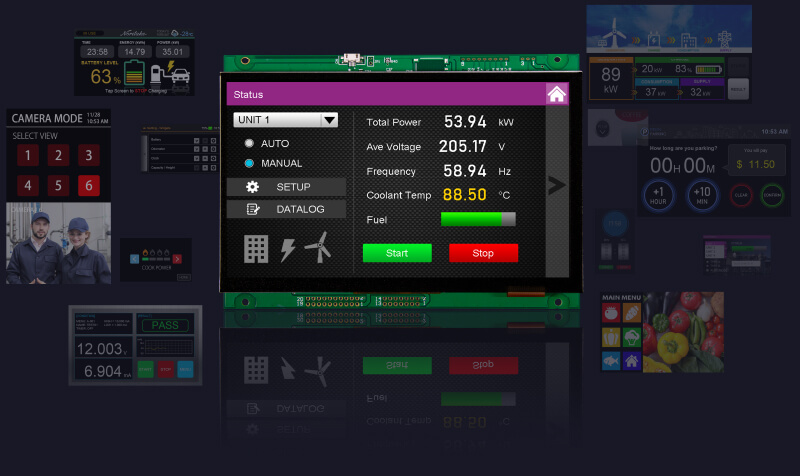

Noritake display products can be used for various applications.
Production equipment
Measurement
Oil & Gas / Chemical
Electricity
Healthcare
Analysis
Education
Entertainment
Kitchen equipment
Agricultural machinery

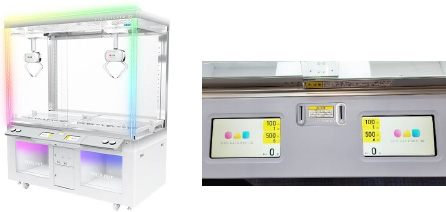

Our product is installed in the UFO CATCHER 10 (pictured right) which is a one of the famous Japanese crane game series made for amusement arcades.
(C)SEGA
'UFO CATCHER' is trademarks or registered trademarks of SEGA CORPORATION.

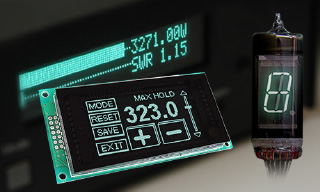

We, Noritake itron Corporation, is a subsidiary of Noritake Company Limited and have our head office and factory located in Taiki-Cho in Mie Prefecture in Japan. We developed the Vacuum Fluorescent Display (VFD) in 1967, ahead of the world. Since the successful launch of our VFD, we have received a number of awards for its technologies and have also supplied display products worldwide as well, including more than 7,000 companies in North America. Nowadays, we serve better quality and more reliable display products learned by long-term display production and experienced technologies.
JQA-1271
JQA-E-90071
Yes it does. However, demo units at trade shows or video presentations have been used to demonstrate our technical possibilities, so all of these results are not guaranteed. Please contact our sales engineers and ask your touch application requirements.

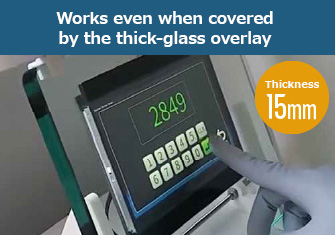

These are examples of feasible applications using our touch-screen technology.

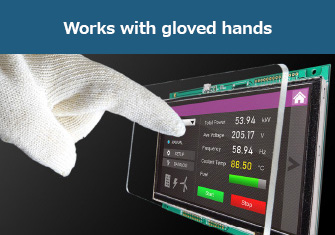

* Works with gloved hands.

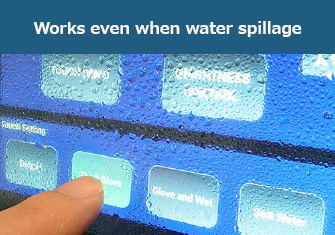

* Drizzle or light rain are spilled on the touchscreen with semi-outdoor application..
No it isn't. The display module is not designed to be waterproof, so the display enclosure must protect the display from water (and moisture). Please check the respective specification to be sure of the display's operating conditions.
Yes it does. The customer can adjust the touch sensitivity to meet the specific touchscreen conditions using the control commands. Also, the touch adjustment can be eased when the data called "Touch Setting Package" is downloaded into the Noritake GT series module. Please note that the touch sensitivity adjustment must be done with the final product because the touch operation may have some difference to the touch application's environment.
One (1). We can accept a purchase order of 1 unit (display module).
Note: the price may vary by quantity. Ask our sales engineer about volume discount.
Yes it is. The display module is enclosed in an anti-static bag and placed on an anti-static (applied ESD protection) styrofoam tray.
Yes or No. Please inquire it via our web inquiry form or consult our sales engineer. All inquiries are welcomed. Depending on their usage, application, quantity, price and so on, we amy consider developping new products.
If you have a specific item, please inqure the spec or price quotation.
