CU-T Series

CU-T series is a character module that has built in ASCII font table and international ASCII font tables.





Product lineup

Digit x Line
20x1 20x2 20x4 40x2

List of size comparison

20x1

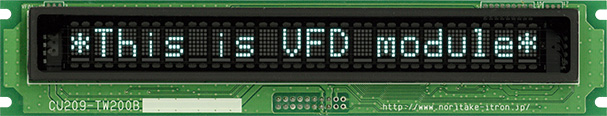

CU209-TW200B

Display size
164.0x11.2 mm
Display geometry
5x7 ドット
Outline size
214.0x41.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2019EB
Evaluation kit
-

CU209-TW202A

Display size
112.6x8.9 mm
Display geometry
5x7 ドット
Outline size
164.0x34.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2019F
Evaluation kit
-

20x2

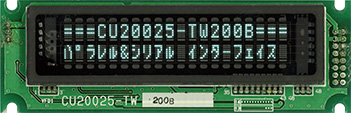

CU20025-TW200B

Display size
78.7x12.9 mm
Display geometry
5x7 ドット
Outline size
124.0x40.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
-
VFD used
-
Evaluation kit
-

CU20026SCPB-T30B

Display size
96.6x14.0 mm
Display geometry
5x7 ドット
Outline size
161.0x34.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK
INT
Functions / Features
-
VFD used
-
Evaluation kit
-

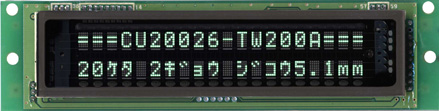

CU20026-TW200A

Display size
100.2x16.0 mm
Display geometry
5x7 ドット
Outline size
155x39.0 mm
Power supply
V
I/F
Parallel
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2025M
Evaluation kit
-

CU20029-TE200K

Display size
159x23.6 mm
Display geometry
15x16 ドット
Outline size
190.0x55.0 mm
Power supply
5 V
I/F
Asynchronous serial
Embedded font
ANK 16x16
INT 16x16
Japanese 16x16
Chinese 16x16
Korean 16x16
Functions / Features
-
VFD used
DN202MZ
Evaluation kit
-

20x4

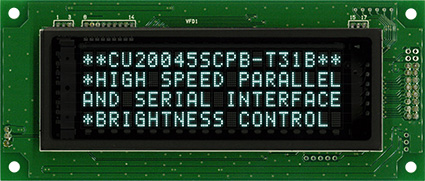

CU20045SCPB-T31B

Display size
90.4x26 mm
Display geometry
5x7 ドット
Outline size
150.0x64.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
-
VFD used
-
Evaluation kit
-

40x2

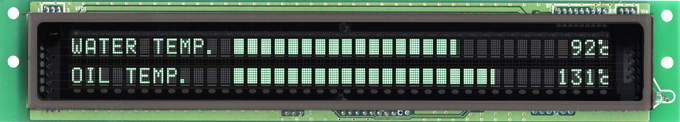

CU40026-TW200A

Display size
188.6x16.0 mm
Display geometry
5x7 ドット
Outline size
240.0x43.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN4025FB
Evaluation kit
-

CU40026-TW200J

Display size
188.6x16.0 mm
Display geometry
5x7 ドット
Outline size
240.0x43.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN4025FB
Evaluation kit
-

CU40026-TW226A

Display size
188.6x16.0 mm
Display geometry
5x7 ドット
Outline size
240.0x43.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN4025FB
Evaluation kit
-

Features

  • Variable Line up
  • ASCII, KATAKANA, International and Asian Font
  • User define font
  • Parallel, Asynchronous Serial interface
  • Wide operating temperature range : -40 to +85°C
  • Power Save Mode
  • Brightness Control
