CU-Y Series

More characters or More big font, and high brightness 200%, gradation by character. This series is a character module with basic and additional value.





Product lineup

Digit x Line
20x2 22x4 24x4 24x6

List of size comparison

20x2

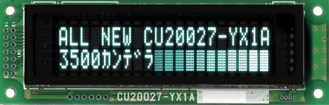

CU20027-YX1A

Display size
73.4x15.0 mm
Display geometry
5x8 ドット
Outline size
116.0x37.0 mm
Power supply
5 V
I/F
Parallel(TTL)
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
Ultra-high brightness (400% brightness)
VFD used
DN2027B
Evaluation kit
-

CU20027-YX100

Display size
73.4x15.0 mm
Display geometry
5x8 ドット
Outline size
116.0x37.0 mm
Power supply
5 V
I/F
Parallel(TTL)
Asynchronous serial
Embedded font
ANK
INT
Functions / Features
Ultra-high brightness (400% brightness)
VFD used
-
Evaluation kit
-

22x4

CU22042-Y1A

Display size
52.5x11.5 mm
Display geometry
5x8 ドット
Outline size
80.0x36.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2242A
Evaluation kit
-

CU22042-Y100

Display size
52.5x11.5 mm
Display geometry
5x8 ドット
Outline size
80.0x36.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2242A
Evaluation kit
-

24x4

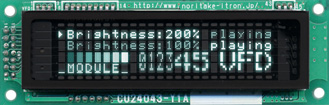

CU24043-Y1A

Display size
73.4x15.0 mm
Display geometry
5x8 ドット
Outline size
116.0x37.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2443A
Evaluation kit
-

CU24043-Y100

Display size
73.4x15.0 mm
Display geometry
5x8 ドット
Outline size
116.0x37.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2443A
Evaluation kit
-

24x6

CU24063-Y1A

Display size
70.4x22.7 mm
Display geometry
5x8 ドット
Outline size
98.0x47.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2463A
Evaluation kit
-

CU24063-Y100

Display size
70.4x22.7 mm
Display geometry
5x8 ドット
Outline size
98.0x47.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial(CMOS)
Embedded font
ANK
INT
Functions / Features
-
VFD used
DN2463A
Evaluation kit
-

Features

  • High brightness setting
  • Highlight Function
  • Font Magnification
  • Descender
  • Screen Action Commands
  • Wide operating temperature range : -40 to +85°C
  • International Font Tables
  • Multiple Interfaces
  • The stable production system
