EMI Shield Window

Standard size EMI shields for TFT and other displays with up to 45dB cut in emissions and 85% transparency. Realize custom ultra fine ITO over aluminium patterns with 10um width and 1um thickness for biometric and capacitive sensors.

Features

Noritake's EMI Shield Window

  • EMI filtering (Electric field) 45dB at 1M - 1000MHz
  • Optical : Transmittance 85%
  • Customizable blackened mesh design by CAD
  • Aluminium micro-mesh for EMI filtering
  • Blackened mesh for enhanced contrast
  • Material: Aluminium on Soda Lime Glass
  • Created by accurate photo-etching
  • Withstand the most demanding environment
  • Low Resistance 2 - 3 ohm

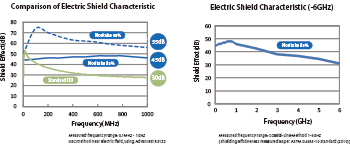

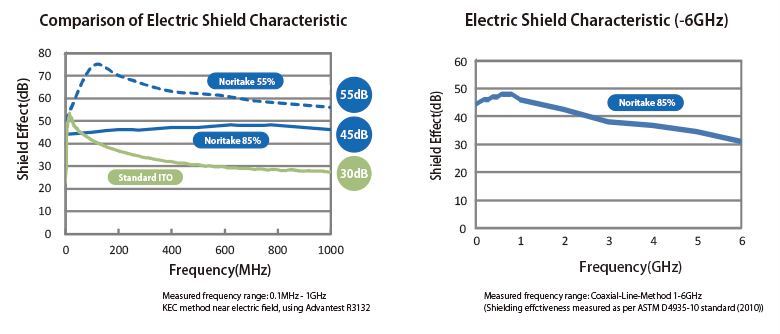

Performance data

Performance dataZOOM

Customization available

Traditional woven meshes are limited to straight lines with same thickness and are prone to inconsistency in wire spacing. The Noriake's photo-etched meshes can be customized to have:
- Multiple mesh line width
- Mesh patterns
- Photo-etching icon or text with the mesh
- Blackened aluminium micro-mesh
Optimized mesh design will allow more light to be transmitted and consistant replication from window to window.
