GU-3000 Series

Available in various sizes, and complete with built-in fonts and functions such as Program Macro, these display modules provide highest-level functionality.





Product lineup

X x Y (dot)
128x128 256x32 256x64 256x128 384x32 512x32

List of size comparison

128x128

GU128X128D-3900B

Resolution
128x128 dots
Display size
51.1x51.1 mm
Dot pitch
0.4x0.4 mm
Outline size
96.5x75.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
P macro
Touch detection method
-
VFD used
MN128128A
Evaluation kit
-

256x32

GU256X32D-3900B

Resolution
256x32 dots
Display size
115.05x14.25 mm
Dot pitch
0.45x0.45 mm
Outline size
159.0x35.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24
Japanese 16x16 32x32
Chinese 16x16
Korean
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
MN25632HB
Evaluation kit
-

256x64

GU256X64C-3900B

Resolution
256x64 dots
Display size
83.08x20.68 mm
Dot pitch
0.325x0.325 mm
Outline size
133.0x38.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
MN25664R
Evaluation kit
-

GU256X64D-3900B

Resolution
256x64 dots
Display size
115.05x28.65 mm
Dot pitch
0.45x0.45 mm
Outline size
159.0x50.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
MN25664J
Evaluation kit
-

GU256X64E-3900B

Resolution
256x64 dots
Display size
140.65x35.05 mm
Dot pitch
0.55x0.55 mm
Outline size
188.0x62.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
MN25664K
Evaluation kit
-

GU256X64F-3900B

Resolution
256x64 dots
Display size
166.25x41.45 mm
Dot pitch
0.65x0.65 mm
Outline size
226.0x77.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
MN25664GC
Evaluation kit
-

256x128

GU256X128C-3900B

Resolution
256x128 dots
Display size
83.08x41.48 mm
Dot pitch
0.325x0.325 mm
Outline size
131.0x66.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
-
Evaluation kit
-

GU256X128D-3900B

Resolution
256x128 dots
Display size
115.05x57.45 mm
Dot pitch
0.45x0.45 mm
Outline size
170.0x90.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
-
Evaluation kit
-

GU256X128E-3900B

Resolution
256x128 dots
Display size
160.64x70.25 mm
Dot pitch
0.55x0.55 mm
Outline size
214.0x110.0 mm
Power supply
5 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
-
Evaluation kit
-

384x32

GU384X32L-3900B

Resolution
384x32 dots
Display size
468.21x50.28 mm
Dot pitch
1.22x1.58 mm
Outline size
551.0x91.0 mm
Power supply
5/24 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
-
Evaluation kit
-

GU384X32L-3940B

Resolution
384x32 dots
Display size
468.21x50.13 mm
Dot pitch
1.22x1.58 mm
Outline size
530.0x108.0 mm
Power supply
5/24 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in LED backlight
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
-
Evaluation kit
-

512x32

GU512X32H-3900B

Resolution
512x32 dots
Display size
307.0x25.4 mm
Dot pitch
0.6x0.8 mm
Outline size
372.0x49.0 mm
Power supply
5/24 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
-
Evaluation kit
-

GU512X32H-3940B

Resolution
512x32 dots
Display size
307.0x25.40 mm
Dot pitch
0.6x0.8 mm
Outline size
372.0x49.0 mm
Power supply
5/24 V
I/F
Parallel
Asynchronous serial
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Functions / Features
Built-in LED backlight
Built-in general purpose I/O
P macro
Touch detection method
-
VFD used
MN51232AT
Evaluation kit
-

Features

Stand-alone system operation

Program Macro (a BASIC-like programming language) enables flexible control



Program Macro compiler "Macro Soushi" (free)


GU-3000 series modules provide a runtime environment for the "Program Macro" programming language. General-purpose I/O signals can be input, and operations based on that can control the display content and ouput signals. Programs created using the Program Macro compiler, "Macro Soushi" can be loaded into the GU-3000 unit, which can then operate as a stand-alone host controller.




GPIO ports for controlling external devices such as switches or PLC.

Connect to switches or PLC I/O

General-purpose I/O ports are useful for controlling switches, sensors, sequencers (PLC), or lights, etc. PLC signal could be used to change the VFD module display. VFD module could output a signal to activate a rotating light.






Macro function, for automatically repeating a registered command sequence

Repeat until external command received

A sequence of commands, stored inside the module, can be run continuously. For example, cursor set command and character codes can be stored as Macro data. On sending the Start Macro command, the characters can be continuously displayed. Useful for start-up display, idle display, or demonstration display sequences.



Easily adaptable for various applications

Wide range of sizes, from compact to long message displays
VFD(蛍光表示管)採用

VFD Module
Long models available, over 500mm

All models features a bright, easy-to-see vacuum fluorescent display (VFD). Compact models 100mm or less, long message display models, and LED backlight models are available - a wide range of sizes and functions to suit various display applications.








CJK + US/European fonts built-in, ready for international usage


VFD
Asian fonts available

32-dot high-resolution Japanese font available
32-dot high-resolution
Japanese font available

English characters and digits, kana, and International fonts for 11 countries (mainly European fonts), as well as Chinese, Japanese and Korean 2-byte fonts are built-in as standard. Other fonts, such as Tamil, or Vietnamese, etc, may also be possible (contact us).

1-byte fonts
International fonts
6x8, 8x16, 12x24, 16x32 dots
America, France, Germany, England, Denmark I, Sweden, Italy, Spain I, Japan, Norway, Denmark II, Spain II, Latin America, Korea.
Character code type
6x8, 8x16, 12x24, 16x32 dots
PC437(USA-Euro std), Katakana, PC850(Multilingual), PC860(Portuguese), PC863(Canadian-French), PC865(Nordic), WPC1252, PC866(Cyrillic #2), PC852(Latin 2), PC858

2-byte fonts
16x16 dots Shift-JIS(Japanese), KSC5601(Korean), GB2312(Simplified Chinese), Big-5(Traditional Chinese)
32x32 dots Shift-JIS(Japanese)









Custom fonts, images, etc can be registered and displayed


Image data stored in FROM
Recall image for display by command

User-created font table stored in FROM
Display by sending character code

GUF39
Font registration software “GUF39” (free)

Images such as icons, etc, and fonts etc, can be pre-stored (registered) in FROM. The image can be quickly displayed with a short command, reducing the load on the host. Font data in BMP format can be easily registered using the "GUF39" software. Up to 224 characters can be defined for original design fonts, foreign characters, or icons, etc.



Improved EMI,ESD characteristics, strong noise resistance


EMI and ESD characteristics improved over previous VFD modules. Useful for harsher noise environments or applications.






Wide operating-temperature range, -40 ~ 85℃
Wide operating-temperature range

Wide operating-temperature range

LCD, due to it's structure, is affected by temperature, but VFD is resistant to temperature effects, providing a clear, stable display in low or high temperatures.

Visibility and reliability below freezing is particularly valued, with various products being used in extremely cold environments nearing -40℃, for applications such as operating panels for commercial freezers.



Other features (hardware)

Power-saving function


If no data is received after a set time, VFD display power can be automatically turned off (display power auto on/off function). This can greatly reduce power consumption when display is not necessary, and also prolongs service life.






DMA Mode for high-speed animation display

High-speed animation possible by
immediately displaying received data

Using 8-bit parallel connection, received image data can be directly displayed. This enables real-time animation display synchronous with data transfer.






Packet Mode - Simultaneously control up to 16 connected units

Splitter board (sold separately)
for connecting up to 16 units

Cascaded connection, of up to 16 units, with individual control in packet mode, is also supported. Refer to specification for details.






LED back-light displays also available

Color makes status instantly recognizable

LED back-light displays also available. RGB 16-level brightness adjustable (4096 colors). Useful for enhancing display in game machines, or displaying warning or status in industrial equipment.



Other features (software)

Simple ASCII-based command control

Display characters or images
by just sending the command

Just power-on and send commands to immediately display text or images.






Action commands for enhancing display

These visual effects are easily done using action commands.

Scroll
Blink
Curtain
Wipe
Random

Character commands for magnification, bold, etc


Character commands can vary character display.

Bold
Magnify
Proportional spacing




Window function for convenient control of screen areas

1. Sampling window
2. Measurement window
3. Temperature window
4. Concentration window

For measuring equipment or audio level meters, etc, display of multiple parameters can be easily controlled.

Up to four "User windows" can be arbitrarily set. The underlying screen area is the (default) "Base window". Each window has it's own home position. Text display, including scrolling, operates within the window.







Detail of Built-in fonts


 Built-in 14 standard font types, providing support for 11 languages.

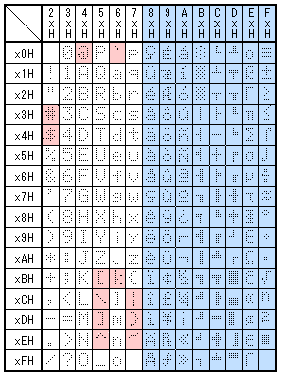

Character codes

キャラクタコードNormal fonts usable in the default state. Character codes 20h?7Fh are normal fonts, codes 80h - FFh depend on the "Character Code Type" setting. Using "International font setting", characters shown with pink background are replaced with the designated international font. Using "Character code type" setting, characters shown with light blue background are replaced with the designated character code type.

International font set "America" and Character Code Type "PC437 (USA : Standard Europe)" are the normal default settings.


International fonts

インターナショナルフォントCharacters that can be set using International font setting. Various countries and languages are supported. When set, the character codes shown in pink are replaced.

Setting value (n) Country Setting value (n) Country
00H America 07H Spain I
01H France 08H Japan
02H Germany 09H Norway
03H England 0AH Denmark II
04H Denmark I 0BH Spain II
05H Sweden 0CH Latin America
06H Italy 0DH Korea

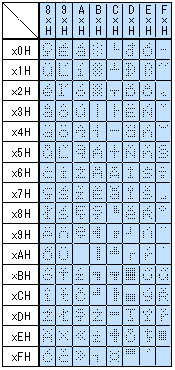

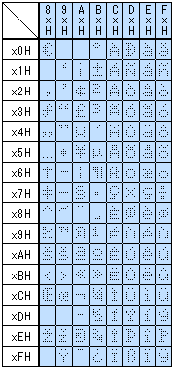

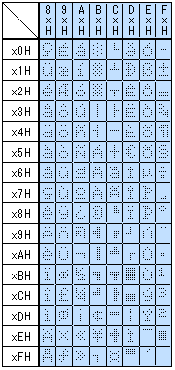

Character code type (codes 80h~FFh)

Characters that can be set using Character code type setting, other than the default "PC437 (USA : Standard Europe)". Various countries and languages are supported. When set, the character codes shown in light blue are replaced.

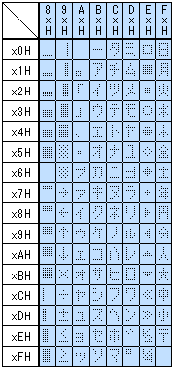

Katakana

Katakana

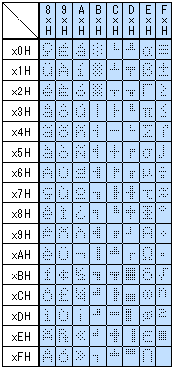

PC850
(Multilingual)
PC850(Multilingual

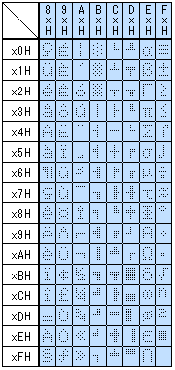

PC860
(Portuguese)
PC860(Portuguese)
PC863
(Canadian-French)
PC860(Portuguese)
PC865
(Nordic)
PC865(Nordic)
WPC1252

WPC1252

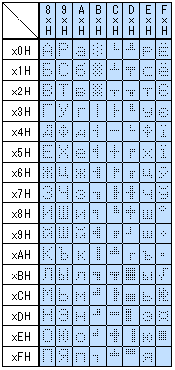

PC866
(Cyrillic #2)
PC866(Cyrillic #2)
PC852
(Latin 2)
PC852(Latin 2)
PC858

PC858



Asian fonts: Kanji, Hangul, Simplified/Traditional Chinese

Modules with built-in 2-byte fonts support Japanese Kanji, Korean Hangul, and Chinese Simplified and Traditional.

Japanese Kanji JIS No. 1/No. 2 standard (partial extract)

JIS

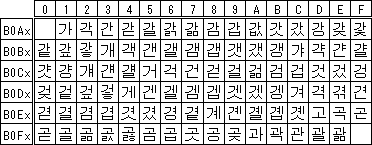

Korean Hangul KSC5601 (partial extract)

KSC5601

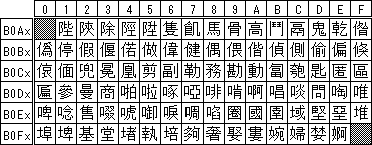

Simplified Chinese GB2312 (partial extract)

GB2312

Traditional Chinese Big-5 (partial extract)

Big

PICKUPFeatured Pickup

Privacy Policy Noritake itron corp This website uses cookies to deliver better service to customers.
(Please read our Privacy Policy) for information on using our cookies, including how to disable them.

OK
