PRODUCTS

GU-D Series

We added Capacitive Touch Switches to the Visible VFD Module. Key components are produced in-house in order to achieve long term supply.

































Product lineup

X x Y (dot)
128x32 140x32 256x64 256x128

List of size comparison

128x32

GU128X32D-D903S

Resolution
128x32 dots
Display size
57.45x13.93 mm
Dot pitch
0.45x0.44 mm
Outline size
98.0x31.0 mm
Power supply
5 V
I/F
Asynchronous serial(CMOS)
SPI
I2C
Embedded font
ANK 6x8 8x16
INT 6x8 8x16
Japanese 16x16
Chinese 16x16
Korean 16x16
Functions / Features
Built-in touch panel
P macro
Touch detection method
静電容量式(自己容量方式)
VFD used
-
Evaluation kit
-

140x32

GU140X32F-D903S

Resolution
140x32 dots
Display size
69.85x21.61 mm
Dot pitch
0.50x0.68 mm
Outline size
98.0x60.0 mm
Power supply
5 V
I/F
Asynchronous serial(CMOS)
SPI
I2C
Embedded font
ANK 6x8 8x16
INT 6x8 8x16
Japanese 16x16
Chinese 16x16
Korean 16x16
Functions / Features
Built-in touch panel
P macro
Touch detection method
静電容量式(自己容量方式)
VFD used
MN14032A
Evaluation kit
-

256x64

GU256X64C-D903M

Resolution
256x64 dots
Display size
83.08x20.68 mm
Dot pitch
0.325x0.325 mm
Outline size
125.0x37.0 mm
Power supply
5 V
I/F
Asynchronous serial(CMOS)
SPI
I2C
Embedded font
ANK 6x8 8x16
INT 6x8 8x16
Japanese 16x16
Chinese 16x16
Korean 16x16
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro
Touch detection method
静電容量式(相互容量方式)
VFD used
-
Evaluation kit
-

256x128

GU256X128C-D903M

Resolution
256x128 dots
Display size
83.1x41.5 mm
Dot pitch
0.325x0.325 mm
Outline size
131.0x66.0 mm
Power supply
5 V
I/F
Asynchronous serial(CMOS)
SPI
I2C
Embedded font
ANK 6x8 8x16
INT 6x8 8x16
Japanese 16x16
Chinese 16x16
Korean 16x16
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro
Touch detection method
静電容量式(相互容量方式)
VFD used
-
Evaluation kit
-

GU256X128D-D903M

Resolution
256x128 dots
Display size
115.05x57.45 mm
Dot pitch
0.45x0.45 mm
Outline size
170.0x90.0 mm
Power supply
5 V
I/F
Asynchronous serial(CMOS)
SPI
I2C
Embedded font
ANK 6x8 8x16
INT 6x8 8x16
Japanese 16x16
Chinese 16x16
Korean 16x16
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro
Touch detection method
静電容量式(相互容量方式)
VFD used
-
Evaluation kit
-

Features

VFD with Capacitive Touch Switch

Capacitive
"Touch Switch Panel"
Touch Switch

Transparent Touch Switch
on VFD module

Using our bright and easy-to-read VFD, the touch switch and built-in controller offers stable operation.
Switch status data can be read from the module both manually and automatically.






Easy to use for a variety of applications.
"Compatible with thick gloves / water spillage"

Reliable operation with gloves and water

We employ know-how from VFD production to achieve Sensitive and Stable touch operation. Operators can wear vaious gloves, and the touch panel can work through a glass front covering.

"Mutual capacitive" models can be made even more robust against water drops or even streams by appropriate fail-safe programming at the host controller.





Gloves and acrylic overlay

Water spill operation



Glass made
"Clear, Clean
and Long Lasting"


A glass substrate is implemented and results in excellent glass appearance and durability.
The glass also has chemical resistance and is easy to clean.






Touch sensor Controller is included.
"Easy to Control"


The on-board touch sensor controller makes the module easy to control. It's possible to send messages to the host when touch switches are operated.
The "Program Macro" processor is also able to read the touch switches.



"Program Macro" and "Macro"

BASIC like scripting language
"Program Macro"



Macro compiler is under development. Please contact sales office for Japanese version.


The GU-D series has a Program Micro Processor. Touch operations, I/O ports and the serial port can be read in to control the display's message. The program macro function allows for stand alone operation of the display module.




Repeat stored command "Macro"

Until a command is received
Repeat stored command

A sequence of commands are stored in the display and repeatedly executed. For example, if a set of commands to move the cursor and display a message are stored in the display, then sending the "start macro" command will make the display repeat the message.
Automatic program start at power-on can also be set. This may be used during display initialization, the idle screen or a demonstration screen.








World wide language "CJK and western fonts"


11 regions are covered in the alpha numeric, Katakana and western fonts. Two byte CJK fonts are also included.



1 byte fonts
International fonts
5x7,8x16dot
America, France, Germany, England, Denmark 1, Sweden, Italy, Spain1, Japan, Norway, Denmark2, Spain2, Latin America, Korea
Character table type
5x7,8x16dot
PC437(USA-Euro std), Katakana, PC850(Multilingual), PC860(Portuguese), PC863(Canadian-French),PC865(Nordic), WPC1252, PC866(Cyrillic #2), PC852(Latin 2), PC858

2 byte fonts
16x16dot Shift-JIS(Japanese), KSC5601(Korean), GB2312(Simplified Chinese), Big-5(Traditional Chinese)





Images and Fonts
stored in Flash memory


Bit map image can be stored in Flash memory.
Display by Display command

User definable font

Images such as icons can be stored in flash memory (FROM). Stored images can be displayed on screen by commands which reduce the load for the host controller. A maximum of 16 character fonts can be stored in RAM and FROM.



Hardware

Four Pins of
"General Purpose I/O"

I/O port
control peripheral

Four Input/Output pins can control peripherals such as a lamp or a buzzer.






Environmental Friendly
"Power Save Mode"


It has low power consumption when the display is not in use. This will extend the display's lifetime.






Multi-drop connection
"I2C bus interface"

Multi-drop I2C bus interface.

The GU-D series supports the I2C bus interface.






Withstand harsh temperatures:
"Operation-Temp: -40 to 85 degrees C"
Wide operationg Temperature


The VFD's structure is more stable than an LCD and its operational temperature range is very wide.
VFDs have a clear and stable message even in -40 degree C conditions.



Software

Easy to use
"Command Control"

Message and image shown by command

feature_soft_t1.gif(5036
Touch can be controlled by command.

After power-on, send character code commands to show messages on the VFD.






Decorating Message "Action Command"

Action commands are for visual effects.

Scroll
Blink

Decorate Characters "Character Command"


Character commands enhance appearance.

Magnify Size of Character
Propotional Character Font




Divide screen "User Window"

(1) Message window
(2) Animation window
(3) icon window
(4) Timer window

In order to manipulate multiple pieces of information on one screen, the user window functionality divides the screen into separate windows and allows the user to control the information easily and independently. The display consists of four user windows and one base window that is the same size as the display. Each user window has its own home position and the character scroll function is performed within the selected window.







Character Font


1 byte fonts for western cuntries and 2 byte CJK fonts are included as standard.

1 byte character code

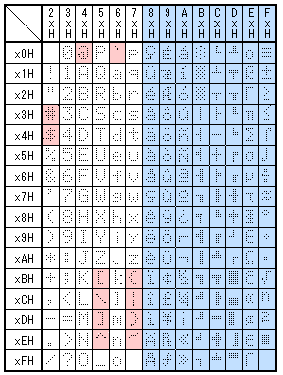

f_font1.gif ( 8695 Byte )Table on right hand side shows default font table.

20Hex to 7FHex are ASCII compliant.
"International font select" command replace pinc fonts with applicable characters.

80Hex to FFHex (light blue part) can be replaced by "Character table type select" command.
Factory default sitting is International font = 00h/America, Character table = 00h/ PC437(USA, Standard Europe).



International Font Table

International FontThis is a table to replace characters include language specific characters.

Index(n) Country Index(n) Country
00H America 07H Spain1
01H France 08H Japan
02H Germany 09H Norway
03H England 0AH Denmark2
04H Denmark1 0BH Spain2
05H Sweden 0CH Latin America
06H Italy 0DH Korea

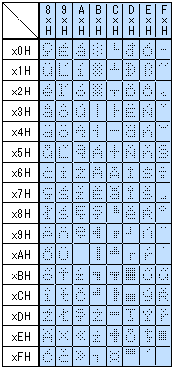

Character table type(80h-FFh)

Followings are font table to be replaced with default "PC437(USA, Standard Europe)".

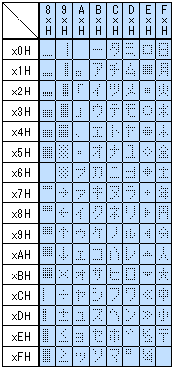

Japanese
Katakana
Japanese Katakana

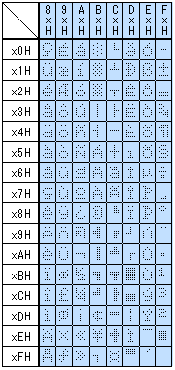

PC850
(Multilingual)
PC850(Multilingual

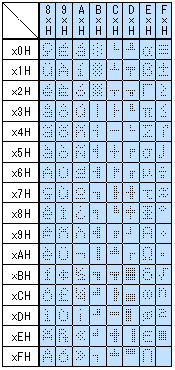

PC860
(Portuguese)
PC860(Portuguese)

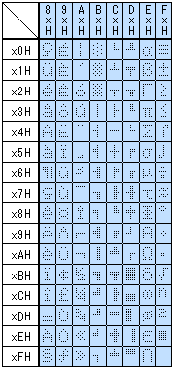

PC863
(Canadian-French)
PC860(Portuguese)
PC865
(Nordic)
PC865(Nordic)

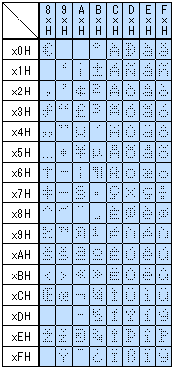

WPC1252

WPC1252

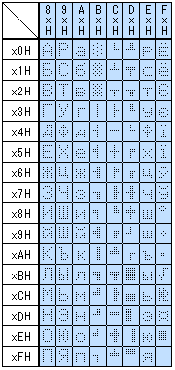

PC866
(Cyrillic #2)
PC866(Cyrillic #2)
PC852
(Latin 2)
PC852(Latin 2)
PC858

PC858



2 byte character code

Japanese Kanji, Korean Hangle, Simplified Chinese and Traditional Chinese are supported.

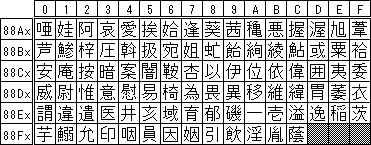

Japanese JIS Level1 and 2 (Excerpt)

Japanese JIS L1 and 2(Excerpt)

Korean KSC5601(Excerpt)

Korean KSC5601(Excerpt)

Simplified Chinese GB2312(Excerpt)

Simplified Chinese GB2312(Excerpt)

Traditional Chinese Big-5(Excerpt)

Traditional Chinese Big-5(Excerpt)
