Digital Video Input Type

Built-in touch monitors can be connected to PCs or SBCs (single-board computers), such as Raspberry Pi, for displaying images.





Product lineup

Screen size
5 inches 7 inches 10.1 inches

5 inches

GTWV050VHB00P

Screen size
5 inches
Resolution
800x480 pixels
Display size
108.0x64.8 mm
Outline size
120.7x88.6 mm
Power supply
5 V
Brightness
810 cd/m2(nit)
Video input I/F
DVI(HDMI connector used)
I/F
Asynchronous serial
USB(HID compliance)(Win-USB)
Functions / Features
Built-in touch panel

7 inches

GTWV070VHA00P

This product is the successor product of GT800X480A-1303P.

Screen size
7 inches
Resolution
800x480 pixels
Display size
154.08x85.92 mm
Outline size
165.0x118.5 mm
Power supply
5 V
Brightness
850 cd/m2(nit)
Video input I/F
DVI(HDMI connector used)
I/F
Asynchronous serial(CMOS)
I2C(HID compliance)
USB(HID compliance)(Win-USB)
Functions / Features
Built-in touch panel

GTWV070VRB00P

Compatible with SBC "Armadillo-640"

The Armadillo-640 and this product can be easily used by connecting them with a single FFC (flexible flat cable). The video input I / F supports RGB, and the touch operation I / F supports I2C (HID compliant).

What is Armadillo-640?

What is Armadillo-640? It is an embedded SBC for IoT equipped with an ARM core application processor provided by Atmark Techno, Inc.. It has excellent durability and safety and is used in various embedded devices.

Screen size
7 inches
Resolution
800x480 pixels
Display size
154.08x85.92 mm
Outline size
164.8x99.8 mm
Power supply
5 V
Brightness
850 cd/m2(nit)
Video input I/F
RGB parallel(18bit)(24bit)
I/F
I2C(HID compliance)
Functions / Features
Built-in touch panel

10.1 inches

GTWX101VHB00P


It is the successor to GTWX101VHA00P.
Touch adjustment is now "finer, faster, and easier".

Screen size
10.1 inches
Resolution
1280x800 pixels
Display size
216.96x135.60 mm
Outline size
230.0x174.0 mm
Power supply
5 V
Brightness
850 cd/m2(nit)
Video input I/F
DVI(HDMI connector used)
I/F
Asynchronous serial(CMOS)
I2C(HID compliance)
USB(HID compliance)
Functions / Features
Built-in touch panel

GTWX101VLB00P

Screen size
10.1 inches
Resolution
1280x800 pixels
Display size
216.96x135.60 mm
Outline size
230.0x174.0 mm
Power supply
3.3/12 V
Brightness
850 cd/m2(nit)
Video input I/F
LVDS
I/F
Asynchronous serial(CMOS)
I2C(HID compliance)
USB(HID compliance)(Win-USB)
Functions / Features
Built-in touch panel

Features



PC/SBC Ready
Recognized immediately by DVI(using HDMI connector) & USB (HID compliant)

  • The following video interface are provided.

[DVI(HDMI connector)]
One HDMI input and USB device connector are available. As long as the host has these interfaces, the module can immediately be used as a touch monitor.


[RGB Parallel]
Connect with a single FFC (flexible flat cable). The image input I/F corresponds to RGB, and the touch operation I/F corresponds to I2C (HID compliant).

[LVDS]
Image input I/F is compatible with LVDS, touch operation I/F is compatible with USB connection (HID compliant), UART, I2C (HID compliant).


Block Diagram

Block Diagram

Useful Functions

Setting adjustment via command

 Through USB, UART, or I2C, settings such as brightness and sensitivity can be changed by command. If you change a memory switch, the setting will remain even when the power is turned off.

Auto Calibration

The touch sensitivity is automatically adjusted to the surrounding environment.






Cover Glass Option

 Touch surface protection with cover glass is indispensable. An option to mount cover glass (tempered glass) and deliver it is also possible.  You can also customize logo printing, decorative printing, one-way mirroring, and change the outer shape of the glass. Please contact us for details.









Stable Touch Recognition
Even in Dry / Wet Environment

Good Touch Level in Dry Environment

 For dry touch, the touch sensitivity level is higher than that of general products (ITO). There is little to no noise interference from untouched areas. This higher sensitivity and low noise interference contributes to very stable touch recognition.

* Our experiment result

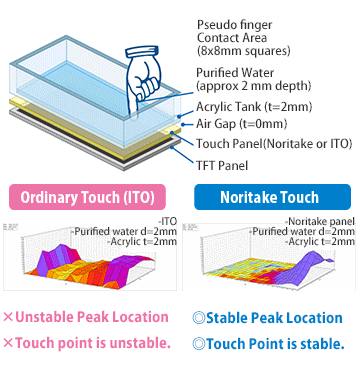

Stable Peak Detection Even in a Wet Environment

 With a stable touch sensing signal, touch detection in a wet environment is possible by locating the signal's peak point.

* Our experiment result
* Operation is not guaranteed under all water quality and conditions.

Gloved Touch is Possible
Wide Touch Tolerance

Our touch panel has higher sensitivity than ordinate touch panels (like ITO) and offers reliable operation with thicker cover glass and compatibility with a variety of gloves.

Comparison of Touch Sensitivity



Touch Operation is Possible with Various Gloves

 With high sensitivity touch recognition performance, it is possible to wear various gloves, such as general gloves and rubber gloves, thick leather gloves and heat-resistant gloves, to perform touch operations.

* Operation is not guaranteed with every glove.


* The touch sensitivity characteristics differ depending on the product, and also fluctuate due to the influence of the ambient environment etc., so individual tuning is required. Please contact us for tuning.
