Command Controlled/GT-CP-series

Powerful command set allows a small controller to manipulate the display. It also has high noise immunity and water and glove compatibility.

Features



Easy simple Display Control
Character Code and Display Command Control

Send character code like ASCII and UTF-8 to display text on screen. Send a display image command to display an image from flash memory. Memory writing tools are available free of charge.

Display Text Message

Display Text Message

Display Image in Flash Memory

Display Image in Flash Memory

Reduce the Load of the Host
Three(3) Touch Modes

Touch panel sends a packet to the host controller when a touch is detected. The packet can report internally calculated coordinates or switch number. The switch number can be defined two ways.

Coordinate
Mode

Matrix Switch
Mode

Custom Switch
Mode

Coordinate Mode
Report X-Y coordinates of the touched location.
Matrix Switch Mode
Report X-Y matrix number in switch array.
Custom Switch Mode
Report a switch number out of defined rectangles.

Useful Functions

Built in Fonts

GT-CP comes standard with both bitmap and outline fonts, along with font tables that include the English, Japanese, Chinese, and Korean languages. You can also register your own font.

26 General I/O Ports

Macro programs are also capable of controlling the module’s 26 general I/O ports. These ports can be used to control other peripheral devices.

Program Macro Execution

Macro programs can be developed and saved onto the module and used without an external controller. These programs can also be set to execute upon system start-up.

Auto Calibration

The touch sensitivity is automatically adjusted to the surrounding environment.







Gloved Touch is Possible

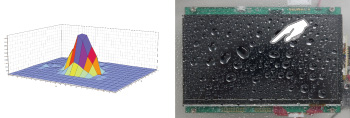

Wide Touch Tolerance

Higher sensitivity than ordinate touch panels (like ITO) and offers thicker cover glass and compatibility with a variety of gloves.

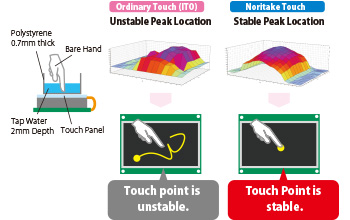

Comparison of Touch Sensitivity





Block Diagram

Block Diagram


Product lineup

Screen size
4.3 inches 5 inches 7 inches

4.3 inches

GTWQ043C3A00PA



4.3 inch size standard model.
It is the successor to GT480X272A-C903PA.

 *There is also a model equipped with a cover glass.
   Please contact us for more information





Screen size
4.3 inches
Resolution
480x272 pixels
Display size
95.04x53.86 mm
Outline size
108.0x80.0 mm
Brightness
850 cd/m2(nit)
I/F
Asynchronous serial(CMOS)
SPI(CMOS)
I²C(CMOS)
USB(High speed)(Full speed)(Win-USB)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro

GTWQ043C3A00NA



4.3 inch size Non Touch panel model.
(Standard model GTWQ043C3A00PA without touch panel)



Screen size
4.3 inches
Resolution
480x272 pixels
Display size
95.04x53.86 mm
Outline size
108.0x80.0 mm
Brightness
1000 cd/m2(nit)
I/F
Asynchronous serial(CMOS)
SPI(CMOS)
I²C(CMOS)
USB(High speed)(Full speed)(Win-USB)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in general purpose I/O
P macro

GTWQ043C3B00PWA



Wide-temperature range model of GTWQ043C3A00PA.
The operating temperature is "-30 to +85°C",
enabling use in harsher conditions than the
conventional product (-20 to +70 °C).



Screen size
4.3 inches
Resolution
480x272 pixels
Display size
95.04x53.86 mm
Outline size
108.0x80.0 mm
Brightness
850 cd/m2(nit)
I/F
Asynchronous serial(CMOS)
SPI(CMOS)
I²C(CMOS)
USB(High speed)(Full speed)(Win-USB)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro

5 inches

GTWV050C3A00PA



5 inch size standard model.



Screen size
5 inches
Resolution
800x480 pixels
Display size
108.0x64.8 mm
Outline size
120.7x88.6 mm
Brightness
810 cd/m2(nit)
I/F
Asynchronous serial(CMOS)
SPI(CMOS)
I²C(CMOS)
USB(High speed)(Full speed)(Win-USB)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro

GTWV050C3A00NA



5 inch size Non Touch panel model.
(Standard model GTWV050C3A00PA without touch panel)



Screen size
5 inches
Resolution
800x480 pixels
Display size
108.0x64.8 mm
Outline size
120.7x88.6 mm
Brightness
950 cd/m2(nit)
I/F
Asynchronous serial(CMOS)
SPI(CMOS)
I²C(CMOS)
USB(High speed)(Full speed)(Win-USB)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in general purpose I/O
P macro

7 inches

GTWV070C3A00PA



7 inch size standard model.
It is the successor to GT800X480A-C903PA.



Screen size
7 inches
Resolution
800x480 pixels
Display size
154.08x85.92 mm
Outline size
165.0x118.5 mm
Brightness
850 cd/m2(nit)
I/F
Asynchronous serial(CMOS)
SPI(CMOS)
I²C(CMOS)
USB(High speed)(Full speed)(Win-USB)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro

GTWV070C3A00NA



7 inch size Non Touch panel model.
(Standard model GTWV070C3A00PA without touch panel)



Screen size
7 inches
Resolution
800x480 pixels
Display size
154.08x85.92 mm
Outline size
165.0x118.5 mm
Brightness
1000 cd/m2(nit)
I/F
Asynchronous serial(CMOS)
SPI(CMOS)
I²C(CMOS)
USB(High speed)(Full speed)(Win-USB)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in general purpose I/O
P macro

GTWV070C3B00PWA



Wide-temperature range model of GTWV070C3A00PA.
The operating temperature is "-30 to +70°C",
enabling use in harsher conditions than the
conventional product (-20 to +70 °C).



Screen size
7 inches
Resolution
800x480 pixels
Display size
154.08x85.92 mm
Outline size
165.0x118.5 mm
Brightness
600 cd/m2(nit)
I/F
Asynchronous serial(CMOS)
SPI(CMOS)
I²C(CMOS)
USB(High speed)(Full speed)(Win-USB)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro

GTWV070C3A01PA



This is the part number of the RS-232 interface specification.



Screen size
7 inches
Resolution
800x480 pixels
Display size
154.08x85.92 mm
Outline size
165.0x118.5 mm
Brightness
850 cd/m2(nit)
I/F
USB(High speed)(Full speed)(Win-USB)
Asynchronous serial(RS232)
Embedded font
ANK 6x8 8x16 12x24 16x32
INT 6x8 8x16 12x24 16x32
Japanese 16x16 32x32
Chinese 16x16
Korean 16x16
Outline font
Functions / Features
Built-in touch panel
Built-in general purpose I/O
P macro
